OMARE CoarsenOperator

# 新增自定义插值算子

参考 NemoSpaceInterpCenter.h 中的实现。

NemoSpaceMeanCenter.h

	class NemoSpaceMeanCenter : public xfer::CoarsenOperator<NDIM> {
	public:
	NemoSpaceMeanCenter(){
	d_name_id = "NEMO_MEAN_INTERP";
	alpha = 0.5; //TODO 粗化时细网格值的权重
	};
	/**
	* @brief 在指定的粗网格内，
	* 将细网格片上指定的数据片插值到粗网格片上指定的数据片上.
	* @param fine 输入参数，Patch 类，表示细网格片.
	* @param coarse 输入参数，Patch 类，表示粗网格片.
	* @param dst_component 输入参数，整型，表示目的数据片.
	* @param src_component 输入参数，整型，表示源数据片.
	* @param coarse_box 输入参数，Box 类，表示粗化网格.
	* @param ratio 输入参数，整型向量类，表示粗化比率.
	*/
	void coarsen(hier::Patch<NDIM>& coarse, const hier::Patch<NDIM>& fine,
	const int dst_component, const int src_component,
	const hier::Box<NDIM>& coarse_box,
	const hier::IntVector<NDIM>& ratio) const{
	const hier::Box<NDIM> fine_box = hier::Box<NDIM>::refine(coarse_box, ratio);

NemoFort.h

	extern void space_mean_center_(int& ir00, int& jr00, int& ic00, int& jc00,
	int& ir0, int& jr0, int& ir1, int& jr1,
	int& ic0, int& jc0, int& ic1, int& jc1,
	int& jpir, int& jpjr, double* ur,
	int& jpic, int& jpjc, double* uc,
	int* ratio);

# Fortran 实现

JASMIN_FILLGHOST.F90

	SUBROUTINE space_mean_center( ir00, jr00, ic00, jc00, &
	ir0, jr0, ir1, jr1, &
	ic0, jc0, ic1, jc1, &
	jpir, jpjr, uf, &
	jpic, jpjc, uc, &
	ratio) bind(c, name="space_mean_center_")
	! input & output
	INTEGER, INTENT(in) :: ir00, jr00, ic00, jc00 !patch lower index (ghost included)
	INTEGER, INTENT(in) :: ir0, jr0, ir1, jr1 !refine box start/end index
	INTEGER, INTENT(in) :: ic0, jc0, ic1, jc1 !coarse box start/end index
	INTEGER, INTENT(in) :: jpir, jpjr !refine patch size (ghost included)
	REAL(wp), DIMENSION(jpir,jpjr), INTENT(in) :: uf !refine patch data
	INTEGER, INTENT(in) :: jpic, jpjc !coarse patch size (ghost included)
	REAL(wp), DIMENSION(jpic,jpjc), INTENT(inout) :: uc !coarse patch data
	INTEGER, DIMENSION(2), INTENT(in) :: ratio !x refinement ratio NDIM?

	! local
	INTEGER :: ic, jc
	INTEGER :: ic_loc, jc_loc
	REAL(wp) :: sum_

	DO jc = jc0, jc1
	DO ic = ic0, ic1
	sum_ = SUM(uf((ic-1)ratio(1)+1 -ir00+1:icratio(1)-ir00+1,(jc-1)ratio(2)+1 -jr00+1:jcratio(2)-jr00+1))
	! coarse local index
	ic_loc = ic - ic00 +1
	jc_loc = jc - jc00 +1
	uc(ic_loc, jc_loc) = sum_ / REAL(ratio(1)*ratio(2),wp)
	ENDDO
	ENDDO

	END SUBROUTINE space_mean_center

# 启用 Overlay

这里 sync_time % 1 != 0 的 1 改为 Overlay 的步长。

NemoLevelIntegrator_body.C Producer.py

	/****************************************************************
	* AMR, 同步粗网格层.
	*****************************************************************/
	void NemoLevelIntegrator::synchronizeCoarserLevel(
	const JASMIN::tbox::Pointer<JASMIN::hier::BasePatchHierarchy<NDIM>>
	hierarchy,
	const int finer_level_number, const double sync_time,
	const double coarser_old_time) {
	using namespace std;
	using namespace JASMIN;

	if((int)sync_time % 1 != 0) return;
	tbox::pout<<"***********************************************"<<endl;
	tbox::pout<<"Synchronize (Overlay) Coarser Level... "<<endl;
	tbox::pout<<" finer_level_number=="<<finer_level_number<<endl;
	tbox::pout<<" sync_time=="<<sync_time<<endl;
	tbox::pout<<" coarser_old_time=="<<coarser_old_time<<endl;
	tbox::pout<<"***********************************************"<<endl;

	// 校正相邻粗网格层的通量
	tbox::Pointer<hier::PatchLevel<NDIM>> finer_level =
	hierarchy->getPatchLevel(finer_level_number);
	tbox::Pointer<hier::PatchLevel<NDIM>> coarser_level =
	hierarchy->getPatchLevel(finer_level_number - 1);

	const double actual_dt = sync_time - coarser_old_time;

	// 细网格 -> 粗网格 (具体方法在初始化构件中)
	sync_overlay_intc->synchronizeCoarserLevel(finer_level, sync_time);
	}

# 注册使用插值算子的变量

Producer.py var_db.py

	OVERLAY_DOUBLE_INTERP_CENTER = "NEMO_MEAN_INTERP"
	t_field_list = [
	"tsn", "tsb",
	"sshn", "sshb",
	"avm_k"
	]
	with open("Overlayregister.h", "w") as f:
	# T
	for field in t_field_list:
	f.write("intc->registerCoarsenPatchData(manager->"+field+"_id,\n")
	f.write(" \""+OVERLAY_DOUBLE_INTERP_CENTER+"\",\n")
	f.write(" manager->"+field+"_id);\n")

main_Nemo.C

	#include "NemoSpaceMeanCenter.h"
	// add user-define sapce refine operator
	tbox::Pointer<JASMIN::pdat::NemoSpaceMeanCenter> nemo_space_mean_center_operator
	= new JASMIN::pdat::NemoSpaceMeanCenter();
	grid_geometry->addSpatialCoarsenOperator(nemo_space_mean_center_operator);

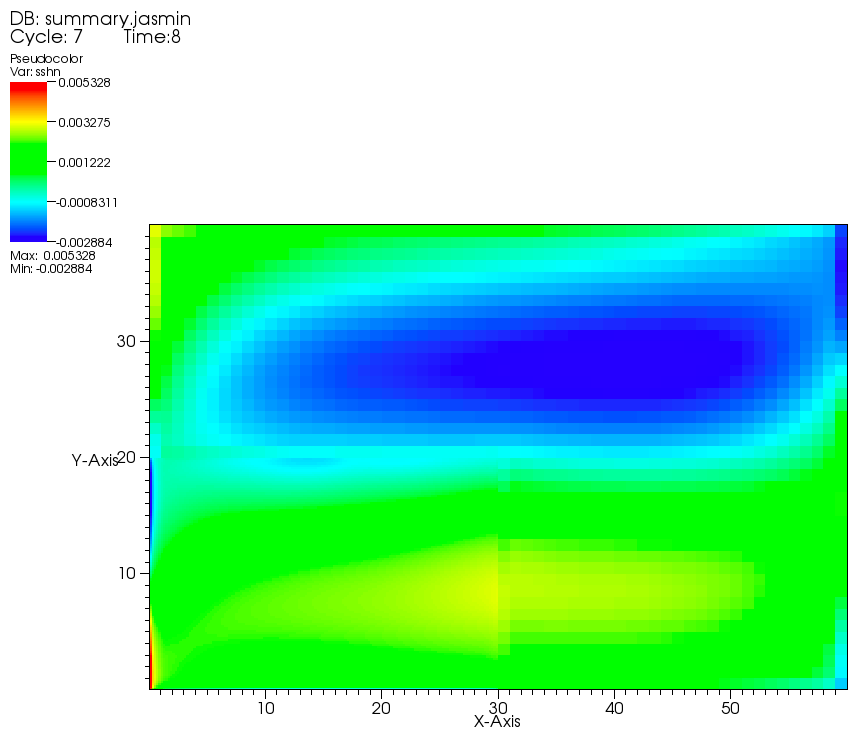

# 与 “CONSERVATIVE_COARSEN” 比较

h5diff omare_mean/build/exp_l2/javis_dump.00006/processor_cluster.00000.jasmin omare_220608/build/exp_l2/javis_dump.00006/processor_cluster.00000.jasmin

size:           [2400]           [2400]
position        sshn            sshn            difference
------------------------------------------------------------
[ 900 ]          6.04414e-07     6.04414e-07     5.68434e-14
1 differences found
dataset: </processor.00000/level.00001/patch.00000/un.38> and </processor.00000/level.00001/patch.00000/un.38>
size:           [15000]           [15000]
position        un.38           un.38           difference
------------------------------------------------------------
[ 145 ]          -1.00591e-05    -1.00591e-05    9.09495e-13
[ 210 ]          -1.2723e-06     -1.2723e-06     1.13687e-13
[ 1985 ]          -8.53e-07       -8.53e-07       5.68434e-14
[ 2438 ]          -1.50793e-05    -1.50793e-05    9.09495e-13

加上 1e-10 的限制后只有 14 个差异值。

# sshn

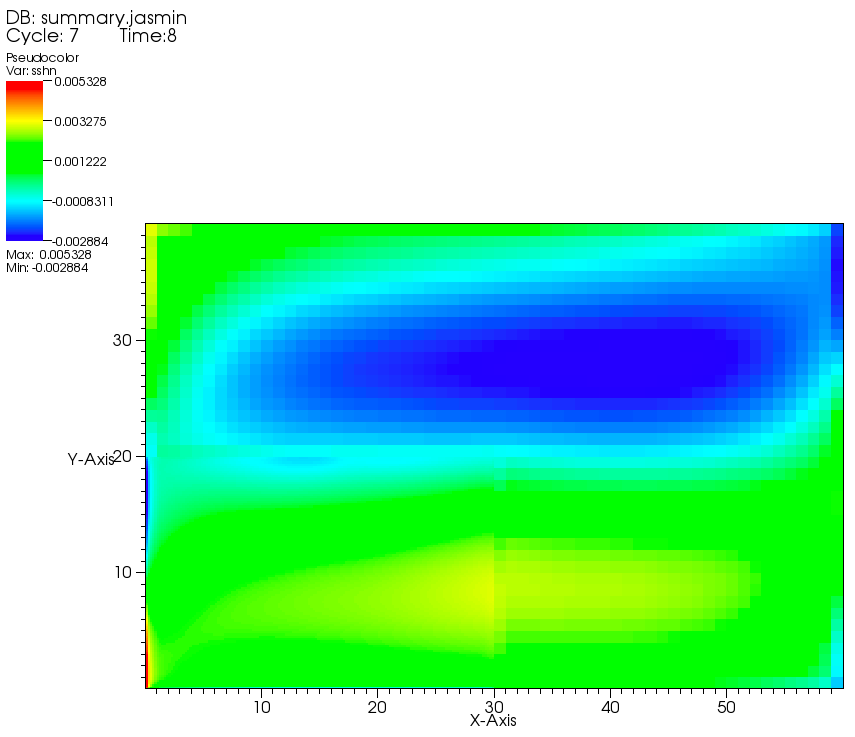

mean
